Two Fundamental Mating Styles
When packaging high-density signal arrays into ultra-thin consumer electronics, engineers rely heavily on Flexible Flat Cables (FFC) and Flexible Printed Circuits (FPC). Connecting these delicate, paper-thin substrates to a rigid host PCB requires choosing between two fundamental mechanical mating styles: Zero Insertion Force (ZIF) and Non-Zero Insertion Force (Non-ZIF). The choice between them dictates not only the ease of assembly on the factory floor but also the long-term wear characteristics of the flexible traces and the total mechanical footprint available on the circuit board.
Non-ZIF Connectors — Passive Spring Contact
Non-ZIF connectors represent the simpler, more passive approach. They feature a fixed internal cavity lined with spring-loaded metal contacts. To mate the connection, an assembler manually pushes the exposed copper pads of the FFC/FPC straight into the slot. As the cable slides in, it must physically overcome the high normal forces exerted by the stationary internal springs.
While this design completely eliminates moving parts—making it highly cost-effective and resistant to drop-induced actuator breakage—it introduces a major wear mechanism: contact friction. The dragging action scrapes the soft copper or tin plating off the flexible cable traces, limiting Non-ZIF interfaces to a small handful of mating cycles before trace degradation causes an electrical open circuit.

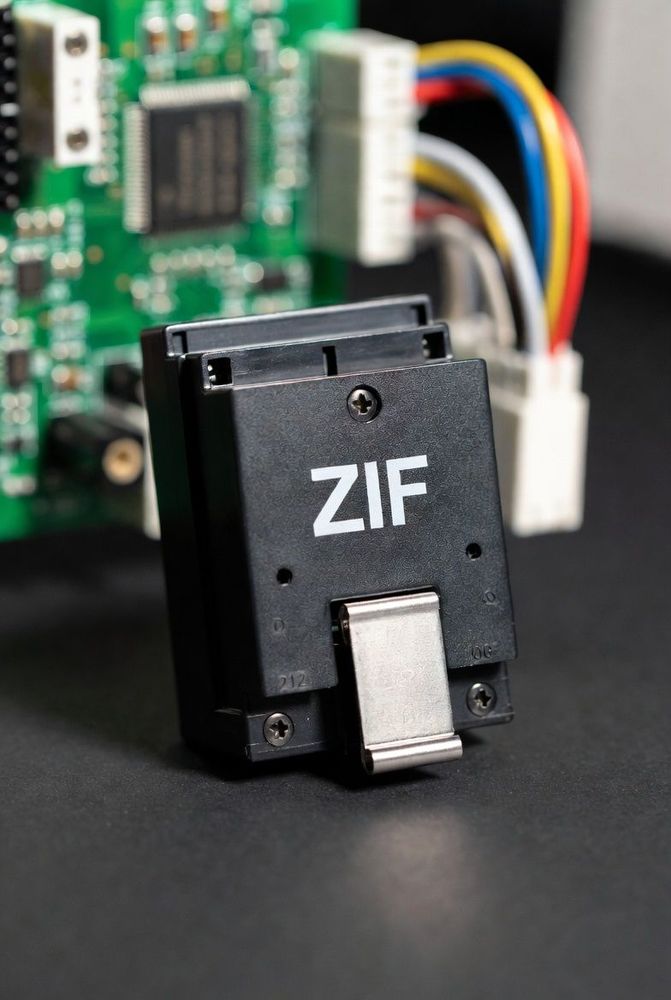

ZIF Connectors — Actuated Zero-Friction Insertion
ZIF connectors are engineered specifically to eliminate mechanical friction during insertion. They incorporate a movable mechanical actuator—such as a flip-lock lever or a sliding collar—that can be manually opened before assembly. When the actuator is disengaged, the internal contact springs open up, leaving a clear, frictionless path. The assembler can slide the delicate FFC/FPC into the slot with zero resistance, completely eliminating the risk of buckling the cable or scraping its delicate conductive traces. Once the cable is fully seated, closing the actuator compresses the internal spring elements down onto the copper pads, generating massive, uniform normal forces across every signal line.
Trade-offs and Selection Criteria
- Non-ZIF: Best for low-cost, low-pin-count systems (typically under 20 positions) where the cable is intended to be plugged in once during factory assembly and never touched again.
- ZIF: Mandatory for high-density, multi-signal routing at fine pitches (0.3mm or 0.2mm), where the cumulative force required to push dozens of Non-ZIF contacts simultaneously would buckle the thin flexible substrate.
- Pin Count Threshold: As pin counts climb and center-line spacing shrinks to ultra-fine pitches, Non-ZIF systems become physically unviable — ZIF provides the precise mechanical gating needed to protect fragile sub-millimeter traces.
Matching Mating Style to Lifecycle
The choice between ZIF and Non-ZIF is fundamentally a lifecycle decision. Non-ZIF wins on cost and simplicity for permanent factory connections; ZIF wins on reliability and trace preservation for high-density, multi-cycle, or precision-routed flexible circuit interfaces.
