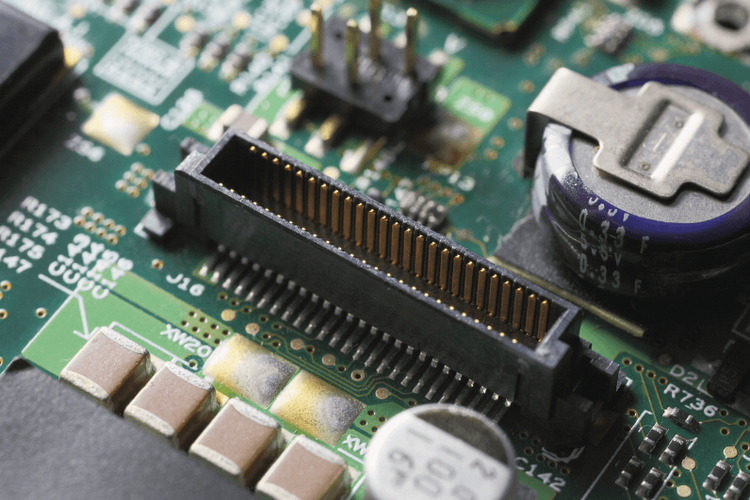

Introduction: The Mechanical Guard of Electrical Continuity
No matter how advanced the plating chemistry or how stable the material selection, an electrical connector cannot function if it experiences physical unmating. In real-world environments, interconnect systems face severe mechanical forces: constant sinusoidal or random vibration in automotive chassis, high-impact shocks in military hardware, and unintentional cable tugging by end-users.
A locking mechanism is the structural feature engineered to resist these separation forces. Selecting the appropriate locking architecture involves managing the operational trade-offs between space constraints, mating cycle speed, human factor usability, and absolute mechanical security.
Part 1: Classification of Locking Architectures
1. Friction Fit (Detent) Mechanisms
- Mechanism: Relies on the physical interference between molded dimples or spring clips on the plug and matching recesses in the receptacle housing.
- Engineering Properties: Low retention force (typically 5 to 20 N). It offers fast, toolless mating and unmating but provides zero protection against sustained vibration or heavy cable tension.
- Best Suited For: Internal board-to-board modules, diagnostic testing lines, and low-cost consumer electronics.
2. Push-Pull and Quick-Disconnect Latches
- Mechanism: Features a spring-loaded outer sleeve that automatically drives locking pawls or clips into an internal groove on the receptacle when pushed forward. Unmating can only be accomplished by pulling back on the outer sliding sleeve, preventing accidental disconnection if the cable jacket itself is pulled.
- Engineering Properties: Combines high mechanical retention forces with ultra-fast mating cycles. Excellent tactile and audible feedback when locked.
- Best Suited For: Medical instrumentation, field communications gear, and dense testing instrumentation arrays.
3. Bayonet Coupling
- Mechanism: Employs pins on the receptacle that slide along helical ramps machined into the coupling nut of the plug. Mating requires a rapid, partial rotation (typically a quarter-turn) to drive the pins into a mechanical detent at the end of the ramp.
- Engineering Properties: High mechanical security that is exceptionally fast to operate. Highly resistant to shock and vibration, though it requires sufficient radial space for the operator's fingers to grip and rotate the sleeve.
- Best Suited For: Industrial automation sensors, heavy machinery, and field broadcast infrastructure.
4. Threaded / Screw-Coupling Mechanisms
- Mechanism: Utilizes mating threads on the coupling nut and receptacle shell to draw the connectors together, compressing internal seals and stabilizing the mechanical interface.
- Engineering Properties: The ultimate choice for absolute mechanical retention force and maximum seal compression. Threaded systems can withstand massive tensile forces on the cable. However, they are slow to mate and prone to thread backing under severe, harmonic high-frequency vibrations unless paired with an internal ratcheting system or safety wire.
- Best Suited For: Automotive drivetrain sensors, aerospace avionics, and deep-sea exploration hardware.
Part 2: Engineering Considerations for High-Vibration Environments
When designing or specifying a connector for high-vibration environments (such as MIL-STD-202 Method 204 or automotive USCAR-2 standards), the locking mechanism must prevent micro-motion at the contact interface.
Even if a locking mechanism keeps a connector from physically unplugging, minor rotational or axial play can allow the male pins to micro-slide against the female contacts. This micro-motion triggers fretting corrosion in tin systems or rapid plating wear in thin gold systems, resulting in erratic contact resistance spikes.
To eliminate micro-motion, threaded or bayonet connectors are engineered with internal wave springs or elastomeric gaskets that remain under constant axial compression when the locking mechanism is fully engaged. This internal preload absorbs vibrational energy and keeps the contact interface perfectly static.
Part 3: Selection Matrix — Performance vs. Form Factor
Friction Detent: Very low retention (<20 N), instantaneous mating, minimal real estate. Failure modes: accidental pullouts and wear over time.
Push-Pull: High retention (50 to 150 N), fast mating (<2 seconds), low to moderate real estate. Failure modes: mating jamming if contaminated with grit.
Bayonet: Very high retention (>200 N), fast quarter-turn mating, requires rotational clearance. Failure modes: pin shearing under extreme cross-axis impacts.
Threaded Screw: Extreme retention (>500 N), slow rotational mating, moderate to high real estate. Failure modes: thread stripping and vibrational loosening (backing off).
Conclusion: Matching Locking Integrity to Operational Risk
The choice of an interconnect locking mechanism is directly bound to the cost of a field failure. A non-critical internal sensor line can safely rely on a simple friction detent or light plastic latch. However, when specifying interconnects for an electric vehicle battery pack, an industrial robotic arm, or an aviation flight control deck, engineers must step up to push-pull, bayonet, or threaded coupling systems. By matching the mechanical retention capability to the expected environmental vibration and tension profiles, designers ensure that the electrical circuit remains secure throughout its lifecycle.
