The Interconnect Architecture of an EV Traction Battery

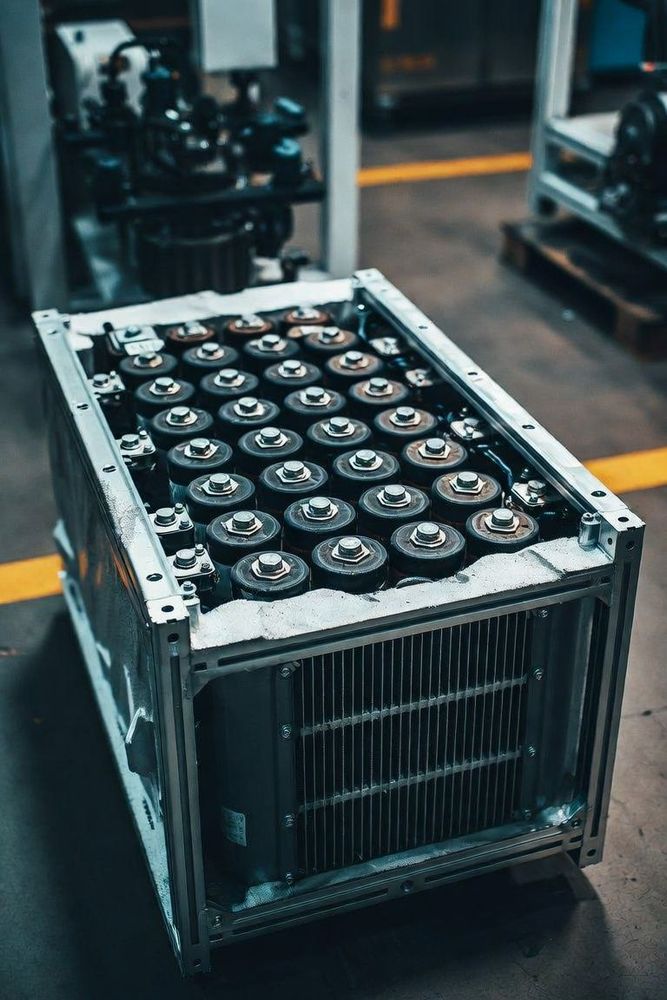

An Electric Vehicle (EV) battery pack is a complex electromechanical assembly containing thousands of individual lithium-ion battery cells grouped into modules and managed by a central Battery Management System (BMS).
Connecting these cells requires two distinct electrical networks operating in close physical proximity: a high-power distribution network that transfers propulsion energy in and out of the pack, and a high-density signal/sensing network that continuously monitors individual cell voltages and temperatures to prevent thermal runaway.
Key Subsystems in Battery Interconnect Architecture
Battery connector systems are divided into four primary functional categories:
1. Cell Connection Systems (CCS) and Module Busbars
Function: Serves as the primary structural and electrical lid mounted directly over battery cell groups. It integrates nickel-plated copper or aluminum busbars that connect cells in series or parallel to build the required pack voltage.
Modern Execution: Modern packs replace bulky discrete wiring harnesses on top of the CCS with integrated Flexible Printed Circuits (FPC) or stamped metal lead frames. These thin layers route micro-voltage pickup lines and thermistor temperature signals directly from each cell terminal back to the local module monitoring board.
2. High-Voltage Module-to-Module and Pack Output Connectors
Function: Transfers the cumulative high-voltage DC power (400V to 800V) between individual battery modules and routes the master output through the pack's main junction box.
Execution: Employs blind-mate plug-and-receptacle connectors or bolt-down shielded terminals. Blind-mate connectors are particularly vital in automated cell-to-pack (CTP) manufacturing, where modules are robotically lowered into the chassis cavity without manual operator access.
3. Battery Management System (BMS) Harness Connectors
Function: Connects the low-voltage BMS controller board to cell monitoring modules, current sensors, and contactor control circuits.
Execution: Utilizes compact, high-density automotive connectors (such as Molex Mini50 or TE NanoMQS) with pitch spacing as small as 0.50mm to 1.80mm. Despite handling low-voltage logic signals, these connectors must maintain high dielectric isolation barriers because their internal pins link to cells floating at high common-mode potentials.
4. Manual Service Disconnect (MSD) Systems
Function: A safety-critical manual plug located on the exterior or service access panel of the battery pack.
Execution: Removing the MSD physically splits the internal battery pack's series circuit in half, reducing the exposed open-circuit voltage at the pack terminals to a safer level (less than 50 VDC) for field service, maintenance, or rescue operations. MSD units combine high-current fuse elements with an integrated HVIL circuit.
Critical Design Rules for Battery Interconnects
When designing battery pack connector infrastructure:
- Account for Battery Cell Swelling and Thermal Expansion: Lithium-ion cells physically expand and contract (breathe) during charge/discharge cycles and thermal aging. Cell-to-cell busbars and flex-circuit sensing leads must incorporate flexible expansion bends (S-bends) to prevent mechanical solder joint cracking over time.
- Ensure Flame Retardancy and Gas Resistance (UL 94 V-0): Connectors located inside the sealed battery enclosure are exposed to electrolyte off-gassing and high heat during thermal events. Specify UL 94 V-0 flame-retardant thermoplastics (such as PPS or high-temperature PBT) for all internal battery connector housings.
- Prevent Galvanic Corrosion at Aluminum-Copper Interfaces: Joining aluminum battery cell terminals to copper busbars or connectors causes severe galvanic corrosion in the presence of moisture. Always specify bimetallic friction-welded transitions or specialized anti-galvanic plating coatings (such as tin-nickel or silver) at all dissimilar metal mating surfaces.
