Understanding Voltage Limits in Connector Design
Unlike current ratings—which are limited by thermal rise and resistance—connector voltage ratings are governed by dielectric isolation, physical spacing, and material breakdown. Exceeding a connector's safe working voltage causes electrical arcing through air or dielectric tracking along plastic housing surfaces.

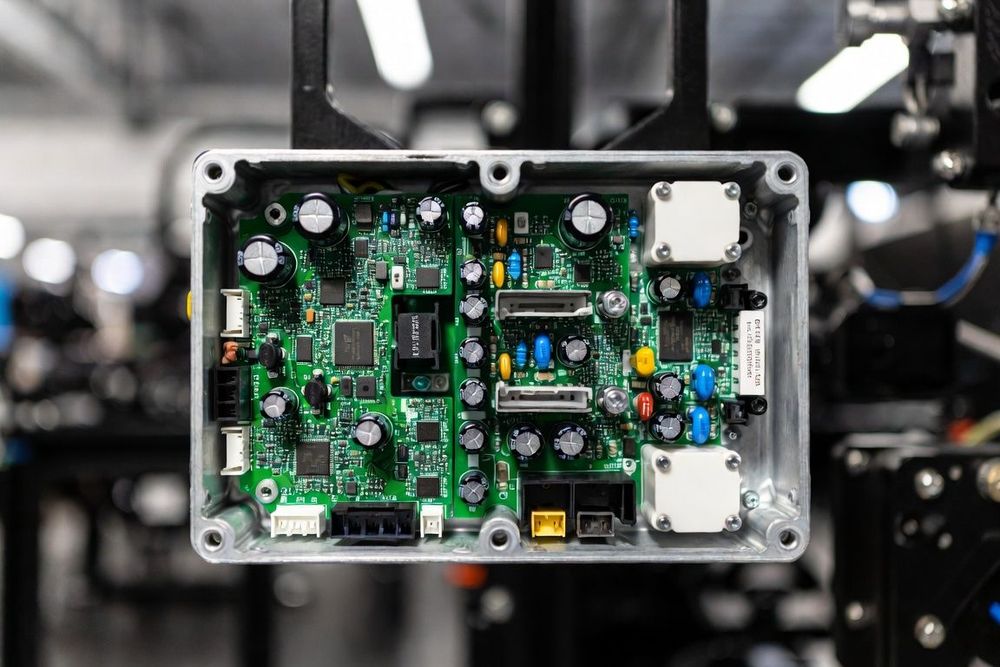

Whether designing high-voltage EV battery management systems, AC mains power supplies, or industrial motor drives, hardware engineers must evaluate voltage ratings through the lens of clearance, creepage, and environmental contamination.
Clearance vs. Creepage: The Physical Isolation Boundaries
When analyzing voltage breakdown paths across a connector interface, two distinct geometric parameters dictate safety isolation:
Clearance: The Distance Through Air
Clearance is the shortest physical distance measured through air between two conductive pins or between a pin and a grounded metal enclosure.
Failure Mechanism: If the electric field strength in the air gap exceeds the dielectric breakdown strength of air (roughly 3 kV per millimeter under standard conditions), an electric arc jumps directly through the air gap.
Primary Drivers: Altitude (air pressure drops at higher elevations, lowering breakdown voltage) and transient overvoltage spikes (such as lightning surges or inductive switching transients).
Creepage: The Distance Across Plastic Surfaces
Creepage is the shortest distance measured along the surface of the insulating plastic connector body between two conductive pins.
Failure Mechanism: Over time, moisture, dust, and microscopic industrial pollutants settle on the plastic housing surface. Under continuous high voltage, tiny leakage currents flow through this contamination layer, carbonizing the plastic and carving a permanent conductive path known as tracking.
Primary Drivers: Environmental pollution, relative humidity, and the insulating plastic's chemical resistance to tracking.
Key Factors Determining Creepage and Clearance Standards
Regulatory standards (such as IEC 60664-1, UL 840, and IPC-2221) dictate required creepage and clearance distances based on several environmental and operational classifications.
1. Comparative Tracking Index (CTI) of Plastics
Connector housing materials are categorized into Material Groups based on their Comparative Tracking Index (CTI), measured by dropping an electrolyte solution onto the plastic under electrical stress:
- Group I (CTI 600V or greater): Highest resistance to tracking (e.g., specialized Liquid Crystal Polymers). Allows narrower creepage distances.
- Group II (CTI between 400V and 600V): High resistance to tracking.
- Group IIIa / IIIb (CTI between 100V and 400V): Standard engineering plastics; requires wider creepage spacing to prevent carbon tracking.
2. Environmental Pollution Degree
The operating environment dramatically affects required creepage distance:
- Pollution Degree 1: Clean, dry, air-conditioned rooms (sealed enclosures, medical equipment).
- Pollution Degree 2: Non-conductive contamination with occasional temporary condensation (office electronics, standard industrial equipment).
- Pollution Degree 3: Conductive pollution or heavy dry dust exposed to high humidity (outdoor machinery, automotive engine bays).
Engineering Strategies for High-Voltage Connector Layouts
When integrating high-voltage connectors into your hardware designs:
- Specify Skipped-Pin or Custom Loading Profiles: If a standard 2.00mm pitch header lacks sufficient voltage isolation for your high-voltage rail, request a custom pin-loading configuration from the manufacturer where every second pin is removed. Removing intermediate pins doubles your physical clearance and creepage distances without changing the overall connector family footprint.
- Apply Derating for High-Altitude Operation: Air density decreases at high elevations, reducing dielectric breakdown strength. If your product operates above 2,000 meters (6,500 feet), increase clearance distances by applying altitude correction multipliers per IEC 60664-1.
- Incorporate PCB Isolation Slots: Extend creepage distance along the board surface by routing a physical slot or cutout in the PCB FR4 substrate directly beneath adjacent high-voltage connector pins.
